Click! Gas Analyzers

Click! modular stationary gas analyzers provide reliable, cost-effective monitoring of gases including CH4, CO2, O2, H2S, H2 and CO.

Contact our Experts Download Tech Specs
A composite image showing the kinds of facilities that Ecotec provides precision monitoring solutions for, including gas extraction, biogas production, energy transfer, and more.

One modular solution to monitor a range of gases

From the simple, reliable and cost-effective Click! Light to ‘fully loaded’ versions with additional sampling points, sensors, inputs and outputs, the modular design allows for flexible system specification. The use of pre-calibrated sensor modules enables the system to be serviced rapidly, annually, and with minimal plant downtime.

Browse the Click! Gas Analyzer Range

Click! Light

Analyse up to 5 gases across a variety of ranges and support for up to 2 sampling points.

A low-cost, fixed gas analyser. It purges the internal gas sensors after each sample, prolonging their lifespan.

Key Features

  • Up to 5 gases measured
  • Up to 2 sample points
  • Automatic or manual sampling
  • Gas sensor purge to prolong their working lives
  • Data logging onto accessible physical media
  • Optional analogue 4-20mA outputs
  • Supports all common industrial communications protocols
  • Display for diagnostics and data access
  • Pre and post scrubber
  • Dual H2S measurement
Get a Quote

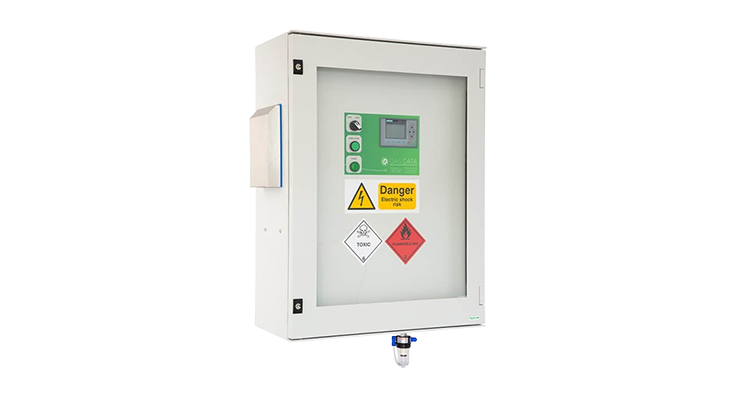

Click! Flexi

Designed to offer total configurability throughout its lifetime, accepting retroactive upgrades as your plant evolves.

Flexi accommodates all standard features of the Click! range. Being built around our proprietary Click! Sensor Modules allows the system to be serviced rapidly, annually and with minimal plant down-time.

Key Features

  • Analyses CH4, CO2, O2, H2S, H2, CO
  • Supports multiple sample points
  • Supports dual gas range analysis for increased accuracy at low ranges
  • Automatic or manual sampling
  • Sample and purge system to extend working life of sensors
  • Supports all common industrial communications protocols
  • Data streaming directly to SCADA or to Data Portal
  • Heater for operation in colder environments
Get a Quote

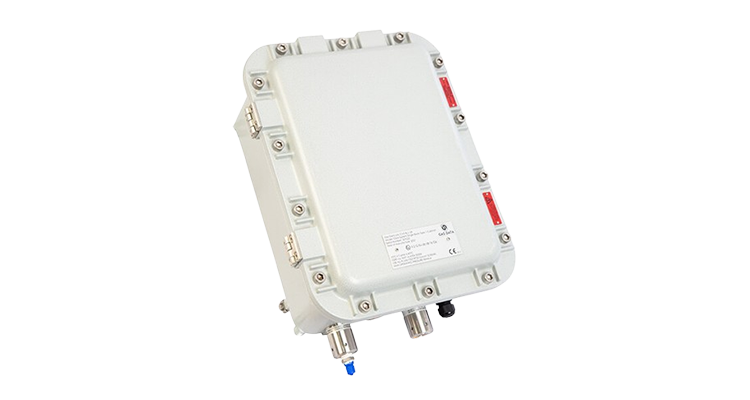

Click! Ex

Click! Ex is capable of analysing up to 4 different gases across variety of ranges from a single sample point.

Click! Ex’s small footprint makes it possible to integrate easily into environments with limited space availability, such as CHP engine containers.

Key Features

  • ATEX Zone 1 certified – II 2 G Ex db IIB T6 Gb
  • 24V DC operation
  • IP 65
  • Up to 2 analogue input for data integration from external sensors, e.g. pressure and flow
  • Up to 4 gas sensors
  • Single sample point
  • Automated data logging
  • Accepts gas pressure up to 1 bar (up to 2.5 bar with optional regulator)
Get a Quote

Download Technical Specifications & Brochure

If you cannot find the technical specification you are looking for, please contact us at +1 (909)-906-1001

Industry Use Cases

Use Cases

  • Pre and post-treatment gas measurement
  • Carbon credit reduction verification
  • Fuel gas measurement
  • Landfill, Biogas & Wastewater
  • Biogas Upgrading & RNG

Benefits

  • Real-time continuous measurement
  • Multiple sample point capability
  • Modular sensor design allows field sensor replacement and service
  • Telemetry and SCADA integration for edge / IOT compatibility
  • Integrated high/low H2S measurement

Get unbeatable accuracy and flexibility

Discover more about the Click! analyzer range and how it can deliver precise results. Contact us today on +1 (909)-906-1001 or fill in the contact form and member of our team will get back to you as soon as possible.

A picture of two men wearing hi-viz personal protective equipment in the field.

Why choose Ecotec biogas monitors?

The Ecotec solution fully integrates rugged hardware with a high-fidelity software platform to seamlessly transform field data into accurate, auditable reporting and baselining. Our hardware withstands the harshest conditions on the planet, and our software accepts data streams from Ecotec hardware or other instrumentation.

At Ecotec, we design solutions for the way you really work. We’ve always been relentless in our dedication to our customers, working shoulder to shoulder together in the field. That means you can expect highly-responsive support throughout our partnership — because we understand the stakes are high.

Let’s make a measurable impact. Contact us today to learn more about how our solutions can support your business. Call our us today on +1 (909)-906-1001 or fill in the contact form and member of our team will get back to you as soon as possible.
